Services & Products
Prism Gas Equipments

Gas Detection System

Prism is in the business of fixed gas detection systems, fire alarm systems, and fire fighting systems, fire suppression systems but with an ever-expanding range of products, research, design, manufacture and supply of fire extinguishing systems based on gaseous, foam and water mediums, fixed gas detection systems for monitoring flammable and toxic gases, fire alarm systems analogue and addressable.
GD-P201 series new generation

GD-P201 SERIES (NEW GENERATION)

GD-P201 Series (New Generation) Gas leak alarm is a kind of wall-hung household gas alarm designed to detect the concentration of combustible and toxic gases or vapors. It provide a visual and audible signals when the gas concentration reaches presetting level, remind you take prompt favorable action , you may start up other link equipment, ventilate gas or shut off gas supply to avoid Fire, explosion, suffocation, and other evil accident. The alarms are available for liquefied petroleum gas (LPG), natural gas (Methane), propane, town gas etc. They are not only installed at home, but also used at any other potentially hazardous areas.

MCU control, Reliable without false alarming
Local sound and light alarming
Drive Long-distance Alarming System
Ventilate good air circulation or shut off gas supply link equipment.

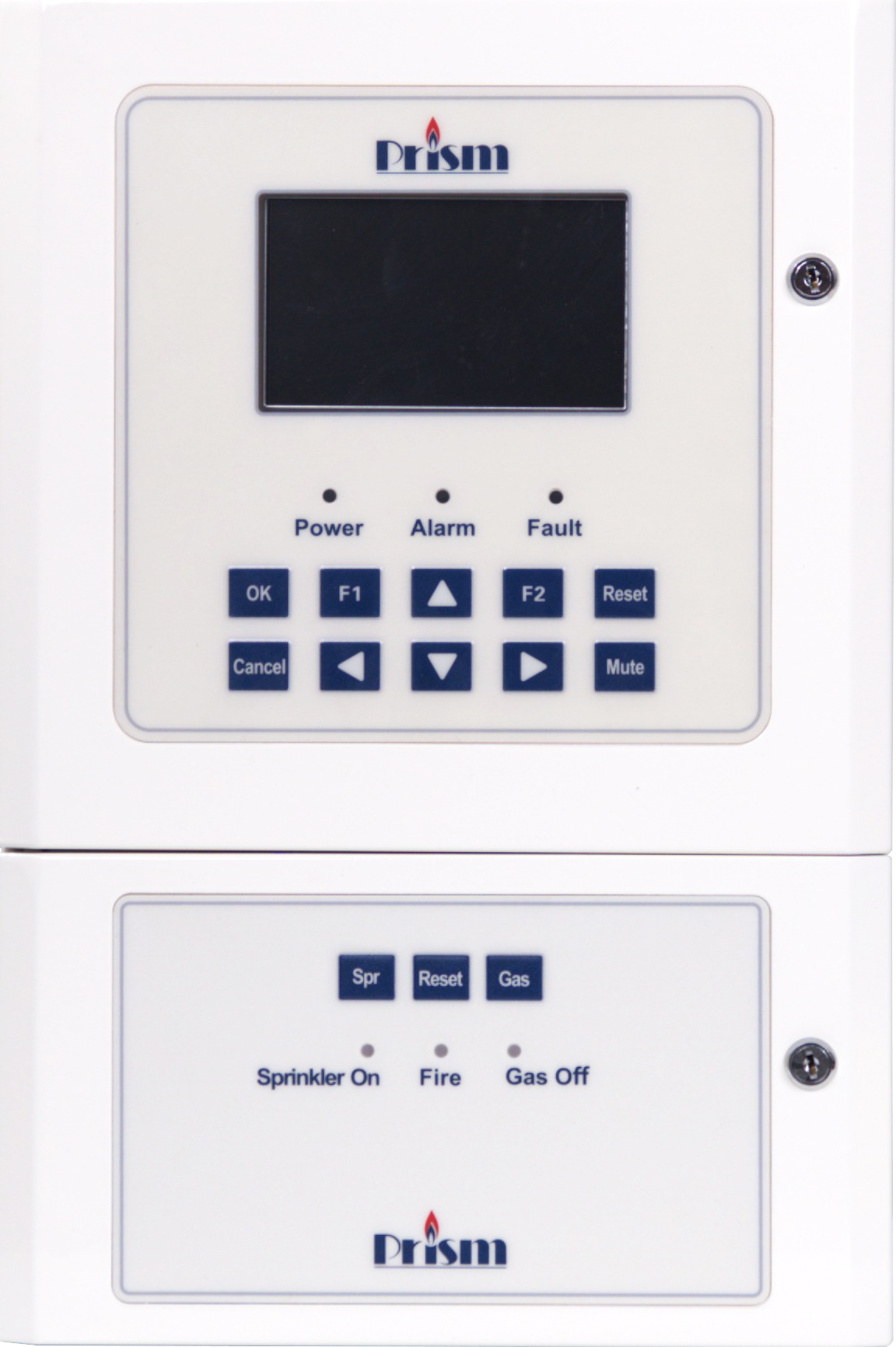

KB200N-I

Features:

Detects combustible (Hydro Carbon) gases

30 No’s detectors / Controller per panel

4 bus & 2 bus structure
Multi point alarm setting facility
Optional printer
Several panels can be monitored from main control station through wireless system

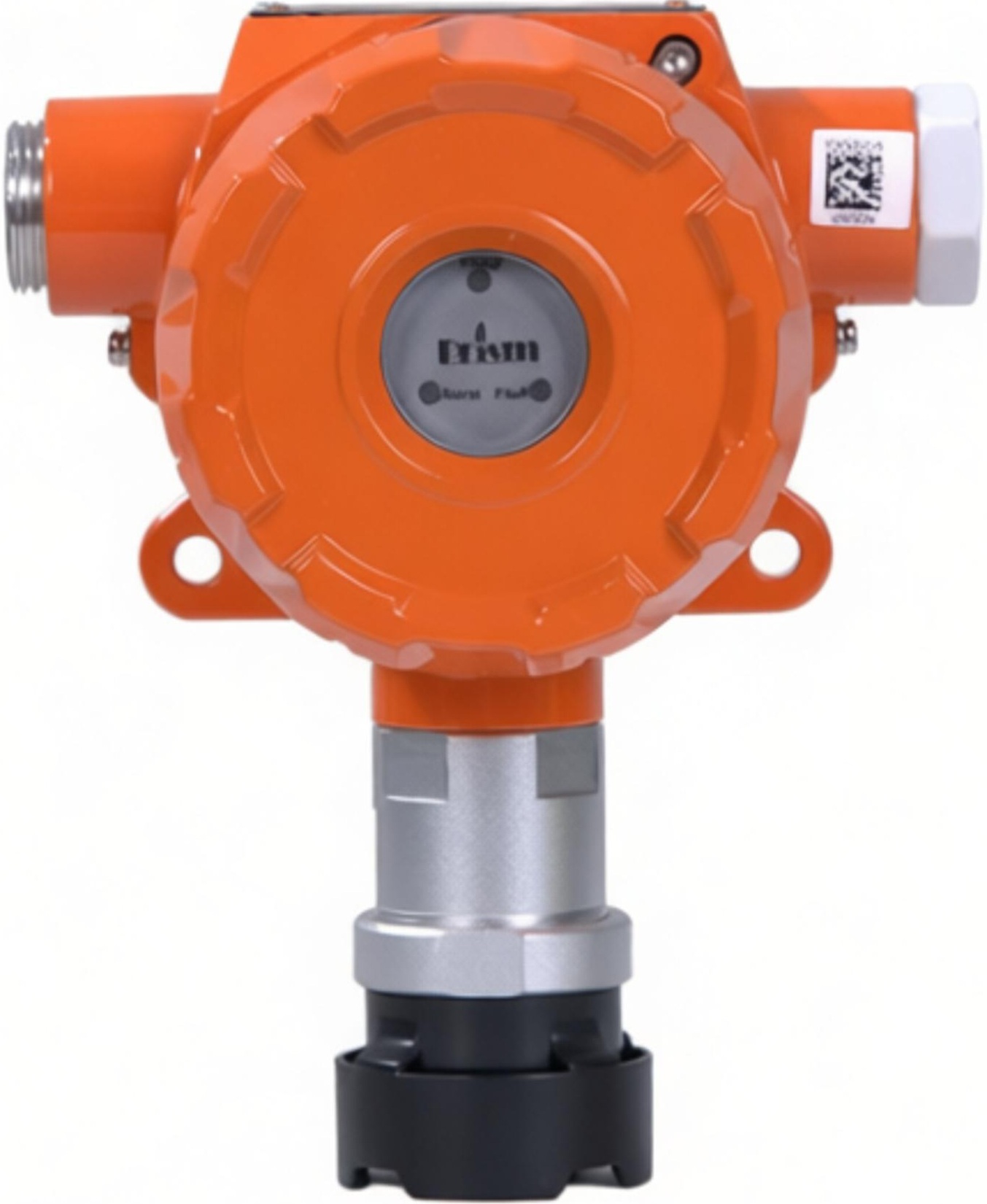

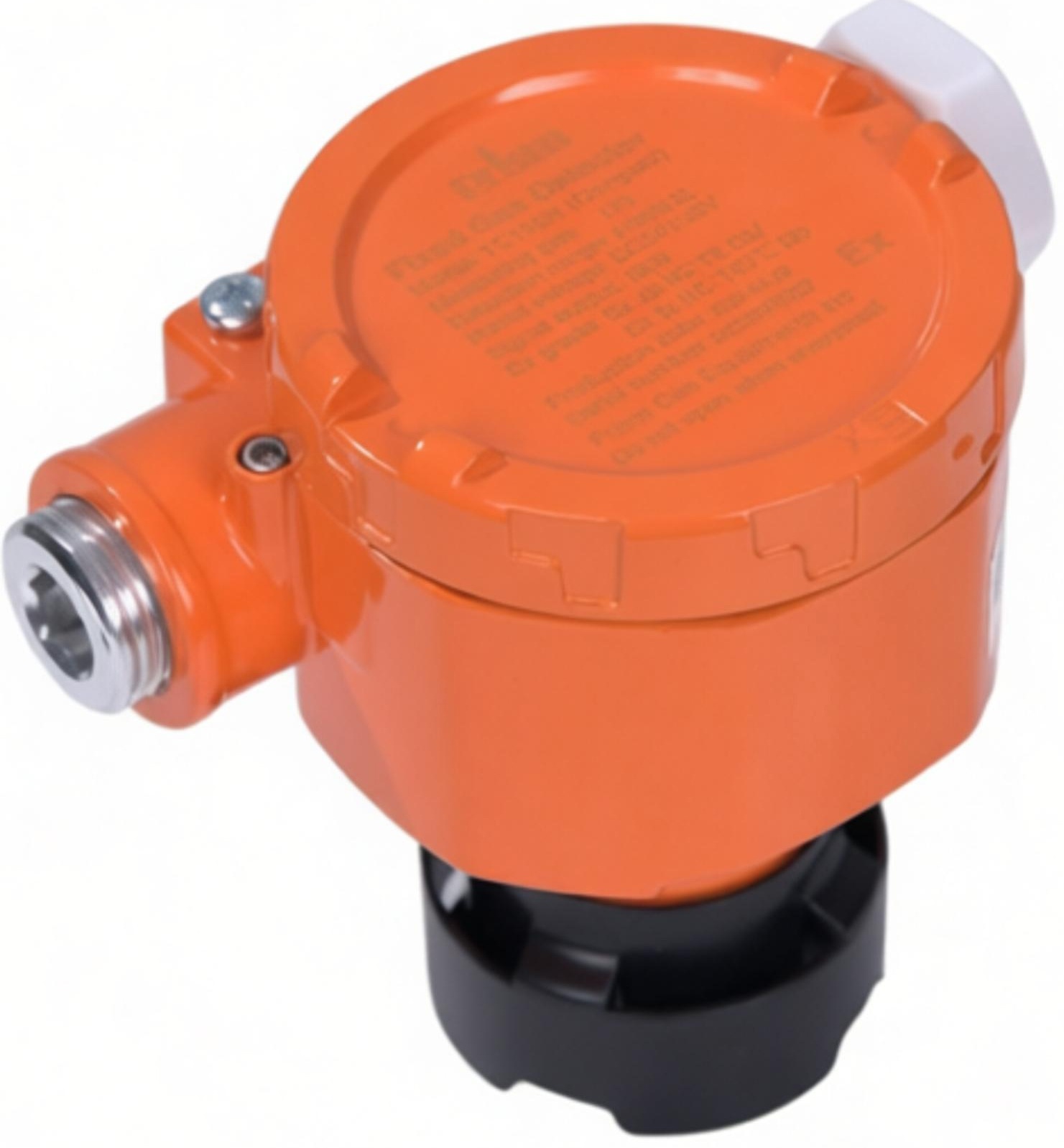

TC 100N Gas Detector

Features:

TC 100N Gas Detectors are employed to detect Combustible Gases, Toxic Gases and CH4 Gas compounds (%LEL) in classified areas. The Catalytic sensors employed for the flammable Gas Detection show excellent output linearity up to 100% LEL.

TC 100N line has been designed to offer a wide range of alternatives that grant customers the best solution to their requirements.

TC 100N has been specifically designed to offer high performance products for industrial applications.

Degree of Protection: Exd II CT6

GD-P201

GD-P201 Gas leak alarm is a kind of wall-hung household gas alarm designed to detect the         concentration of combustible and toxic gases or vapors. It provide a visual and audible signals when the gas concentration reaches presetting level, remind you take prompt favorable action , you may start up other link equipment, ventilate gas or shut off gas supply to avoid Fire, explosion, suffocation, and other evil accident. The alarms are available for liquefied petroleum gas (LPG), natural gas (Methane), propane, town gas etc. They are not only installed at home, but also used at any other potentially hazardous areas.

Gas Meters

Prism Diaphragm gas Meter TJ-J1.6 to TG-G 25 are typically used for domestic use, Hot water heating applications requiring accuracy at low to medium gas flow rates. It is designed for use with natural gas, LPG and all non corrosive gases.

Prism gas meters meet national and international metrological standards and during test bench controls the meters are 100% tested according to customer or national requirements.

With its ultra compact robust design, Prism gas meters ensures a consistent level of accuracy and stability over time and is ideal to meet needs of emergent gas markets.

Features

Compiling with EN1359 standards.

Most Suitable for Propane/NG, Air, Nitrogen, Inert gas.
Use of Anti freezing and round synthetic diaphragm ensures long life.
Separation of measuring chamber and index ensures no leakage even if glass is broken.

Proven Reliability

Long term accuracy and stability
Remote reading (Optional)
Established Design
Robust Construction
Flow direction selectable

Solenoid Valves

PRISM gas equipments are introducing to their customers the best solutions for their customers’ needs.
A lot of studies and researches have been involved in choosing the final products which meet the customer requirements.

Prism Coils are designed for continuous duty in conformity to the EN60730 safety standards.
They are encapsulated in a self-extinguishing synthetic material and offer high mechanical protection and excellent thermal dissipation. They are fully interchangeable on most of Prism solenoid valves, thereby reducing warehouse inventories.

Features

Normally Closed Type
Application: Propane Gas, Natural Gas, Air
Brass Body confirming to EN12165
Diaphragm FPM, NBR, PTFE
DIN 40 050 Waterproof coil
DIN 43 650 DIN-Plug to IP65 grade Protection
Continuous cycle,

Optional Explosion Proof coil 3E, EEXmIIT4

Ambient temperature: -15 ~ 60° C
Voltage Tolerance: ± 8%
360° Rotary Coil
Intrinsic Safe Coil
Coils orient ability at 360° Easy and quick installation

Gas Valves

Prism offers complete range of industrial valves. With several body styles and ratings on offer, a wide range of applications can be controlled effectively. With threaded or flanged options.
Prism ball valve range will provide reliable and proven long term service.

Features

Threaded ball valves of one piece body and compact design. Self adjusting live loaded stem packing. Blow out proof stem.

Prism Manual Valves are available in 1/2” and 3/4″ sizes.

The economical and versatile Prism Brass Body or Nickel plated, brass bodied full bore manual valves are especially suited for gas and liquid applications.





ASOV-209, Automatic shut off valve





Features

Prism Automatic Shut off valves are designed to cut off the Gas incase the upstream pressure increase more than the set pressure of the valve.

Prism Auto Shut off valve is extension of the Prism Ball valve series PBV.

It is specially designed to be installed prior to Appliance.
